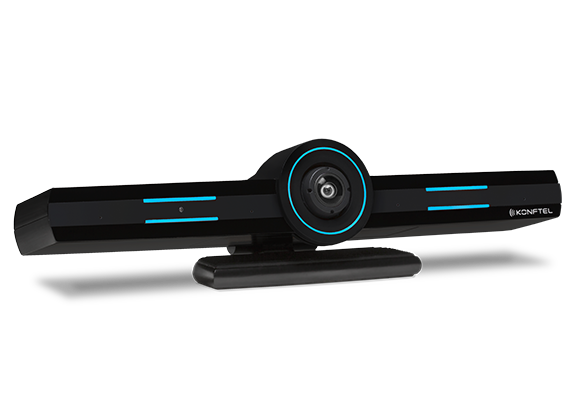

Konftel CC200 Conference camera for standard-based video conferencing, SIP/H.323. 4K camera sensor
SKU code: 931501001
Product name: Konftel CC200
Item no.: 931501001
Contents: Konftel CC200, Lens cap, Remote control with qwerty keyboard and two AAA batteries, Wall mount with screws, Power adapter 220V (EU, US, AU, UK), HDMI Cable 1.5 m, 90° HDMI adapter, Quick Guide and Safety instructions.Size: 28.0 (11.0”) x 5.5 (2.2”) x 6.5 cm (2.6”) (LxWxH)
Weight: 0.68 kg
- IP: H.323, SIP (RFC 3261).
- Bit rate: H.323/SIP up to 4Mbps
- MCU compatibility: H.243, H.231 XMPP Presence support.
- Sensor: 4Kp30
- Video resolution: 1080p30
- Horizontal Field of View: 102°
- Vertical Field of View: 68°
- Digital zoom: 5x
- Preset: up to 122 presets (web managed), up to 10 presets (GUI managed).
Video features: Two simultaneous channels: camera + content.Video protocols:
H.264, H.264 High Profile.
Dual: H.239 (H.323) and BFCP (SIP)
SVC (Scalable Video Coding) H.263+ is supported with resolutions up to 4CIF@15fps. Only RFC2429 is supported. Custom formats and annexes are not supported.
Live video from built in camera up to 1920 x 1080p30fps.
Wireless presentation up to 1920 x 1080p15fps.
1x HDMI, 3840 x 2160@25, 30fps; 1920 x 1080@25,
30fps; 1280 x 720@25, 30fps
Live video encoding format:
1920 x 1080p@25, 30fps
1280 x 720p@25, 30fps
1024 x 576p@25, 30fps: w576p
848 x 480p@25, 30fps: w480p
768 x 448p@25, 30fps: w448p
704 x 576p@25, 30fps: 4CIF
704 x 480p@25, 30fps: 4SIF
624 x 352p@25, 30fps: w352p
576 x 336p@25, 30fps
512 x 288p@25, 30fps: wCIF
416 x 240p@25, 30fps: w240p
400 x 224p@25, 30fps
352 x 288p@25, 30fps: CIF
352 x 240p@25, 30fps: SIF
25 language on-screen user interface.
Infrared remote control.
API for endpoint control.
Microsoft Exchange calendar integration.
Android™ apps can be downloaded on the device and used alongside the Konftel CC200 video-communication application (Android is a trademark of Google LLC).
Google Services Framework support by means of OpenGapps.
Touch Screen Monitor control supported.
Group Framing support for huddle rooms.
External Keyboard/Mouse supported through USB interface or Bluetooth.
Directory service & address book:
LDAP Client (H.350).
Receive global address book from enterprise LDAP Server.
Configuration, call, diagnostics and management functions are accessible with Internet Explorer 8.0+, Firefox 3.6+, Safari 5.0+, Chrome 11.0+ and Opera 11+.
Automatic Firmware Upgrade through Cloud.
Recording on USB memory stick.
Feature supported in call and outside of a call.
Supported disks with file system FAT32, EXT2, EXT3 and EXT4.
Recorded file resolution 720p25 (rescaled to 720p when exceeding such resolution).
Control API commands available to transfer the recorded file to a remote FTP server.
Digital signature for recorded files.
Acoustic echo cancellation
Audio error concealment
Automatic Gain Control (AGC)
Automatic noise suppression
G.711, G.719, G.728 and G.729 A/B, G.722, G.722.1, G.722.1
Opus Annex C
Microphone: Microphone array
USB ports: 1 x USB-C, 1 x USB 3
Audio inputs: Bluetooth, USB
Audio outputs: 1 x HDMI, Bluetooth, USB
Content sharing / Web collaboration features:
Wireless presentation (Wi-Fi Display – Miracast) up to 1080p15fps.
Present content using Android Apps and USB memory stick.
Share content through HDMI using the optional Konftel AV grabber connected to the USB port (optional accessory). Supported laptop resolutions are as follows:
1920x1080p30, 50, 60
Content sharing / Split & share / Web collaboration protocols:
Dual video: H.239 (H.323), BFCP (SIP).
Wireless screen sharing (Wi-Fi Display – Miracast).
IPv4 and IPv6 simultaneous support.
Auto Gatekeeper discovery.
QoS support: IP Precedence, IP Type of Service (ToS),
Differentiated Services (diffserv).
IP adaptive packet management:
Packet Loss based down-speeding.
Packet Loss recovery policies.
H.323 security per H.235v3 / Annex D. SIP security per SRTP and TLS 1.2, enciphering up to AES-256.
SIP “Digest” authentication (MD5) RTP media enciphering with AES-256.
Public-Key including Diffie-Hellman (2048 bits), RSA (up to 4096 bits).
Cryptographic hash (up to SHA-512).
Web access via HTTPS.
Selective enable / disable of IP features.
White list support.
Auto NAT discovery HTTP and STUN H.460.18, H.460.19 “Keep Alive” packet time configurable.
DHCP, DNS, HTTP, HTTPS, RTP/RTCP, SNTP, STUN, TCP/IP, TELNET, TFTP , 802.1q and 802.1p.
10/100/1000 Base-T full-duplex (RJ-45).
Wi-Fi (802.11a/b/g/n, 802.11ac, Hotspot).
100-240VAC, 50-60Hz, 2.5A max.
